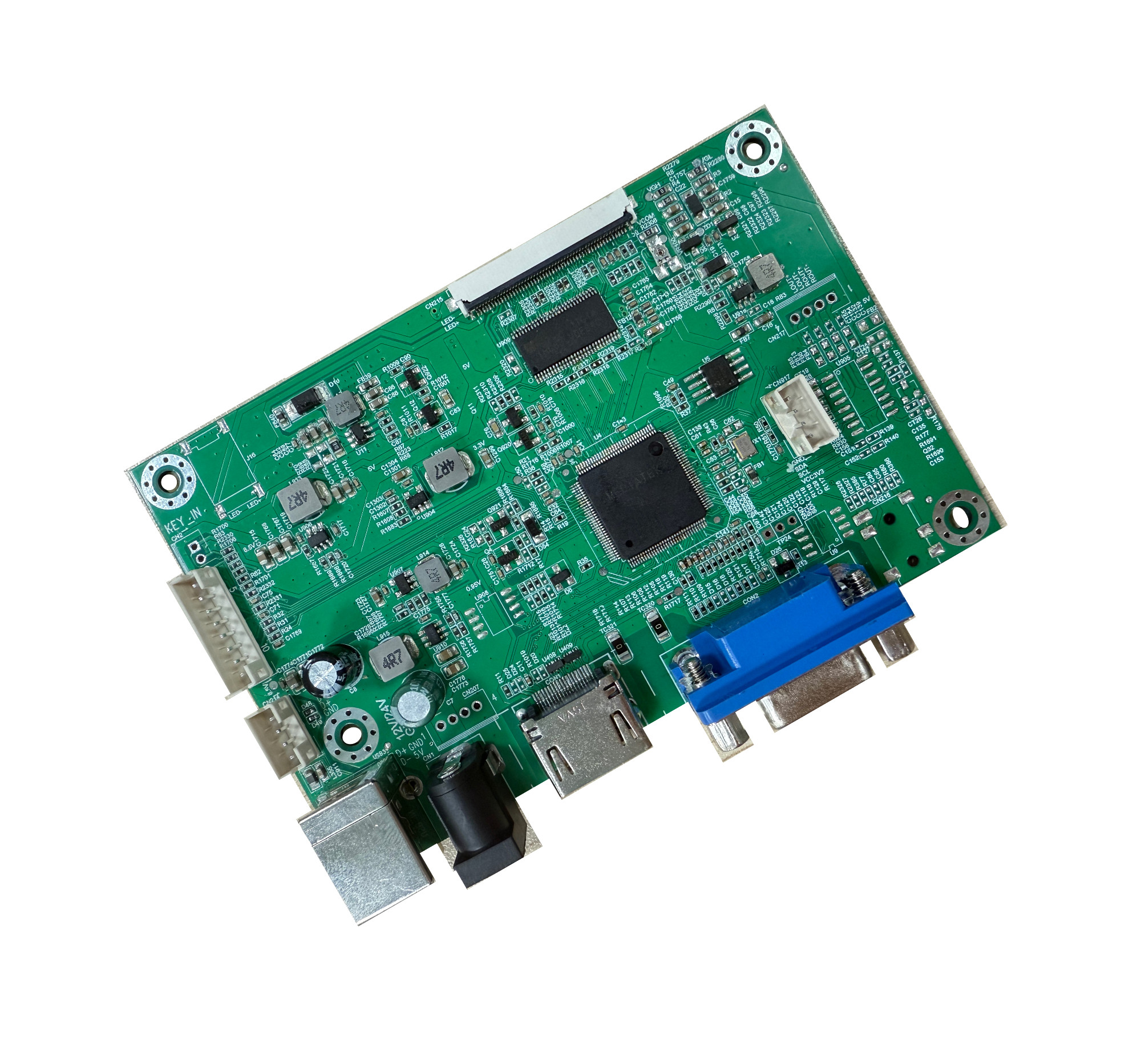

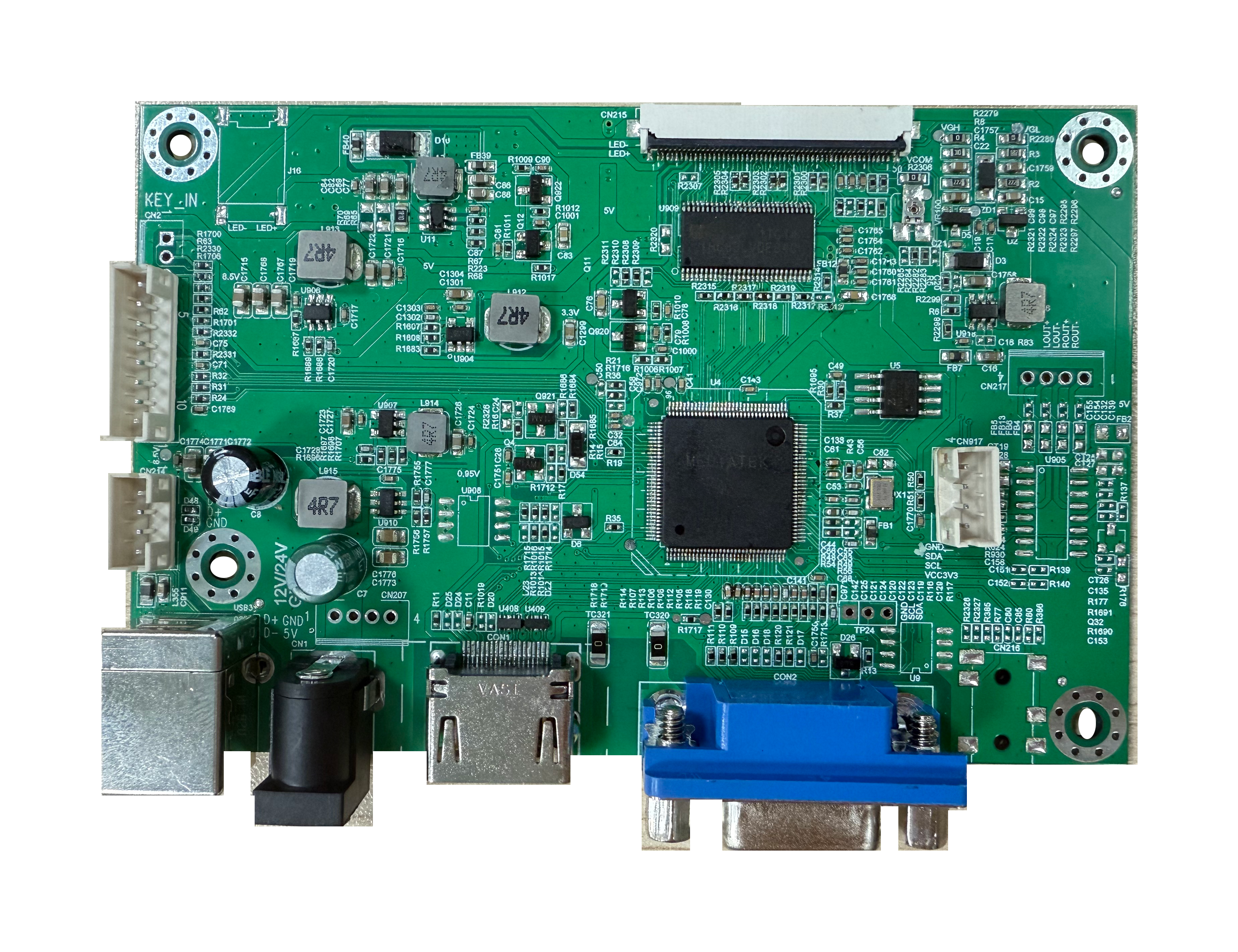

The OPD-F119 combines two of the most popular input formats,HDMI, Analog RGB (VGA) in a compact general purpose solution for LCD panels up to 1280x1024 resolution.
| LCD Panel Connectivity | Panel connection: TTL(RGB) Panel resolutions: Up to 1280x800. The range of panel
resolutions includes all standard panel resolutions as well as custom
LCD panel resolutions. For example custom cut panel resolutions can also be supported. The minimum panel resolution supported is 800x600. Colors: Up to 8-bit per colorPanel power: 3.3V Backlight inverter/driver support: PWM (8 bit), DC (5V or 0V) |
| Input: DVI-I (x1) | 60Hz up to 1280x800 480p, 576p, 720p |
| Input: VGA (x1) | 60Hz up to 1280x800 With auto detect of Digital Separate Sync, Sync-On-Green & Composite Sync. |
| Output: Audio |
2*3W, stereo, no amplification. |
| Function Interface | On Screen Display (OSD) menu Functions can be called by buttons or IR remote control. |
| Functions | Contrast, Sharpness, Clock, Phase, Color temperature, Image position, Auto picture setup, Auto RGB calibration, OSD timeout, OSD position, OSD menu rotation, OSD transparency, Select input source, Volume control, Load factory defaults |
| Other | PCB size: Size: 107.0mm x70.0mm Mounting: 4 grounded mounting holes Controller power: +12VDC ±5%Controller power consumption: ~2.5w (controller logic only, no panel or backlight driver) Standby power consumption: <0.5W Status indicators on board: Dual color LED |
| Reliability | MTBF in excess of 5,000 hours @ 25oC Warranty 1 years |
| Customization (options*) | Panel timing Video input timing support Custom EDID Splash screen logo Custom hotkeys , menus Full PCBA relayout, conformal coatings & other hardware changes |
